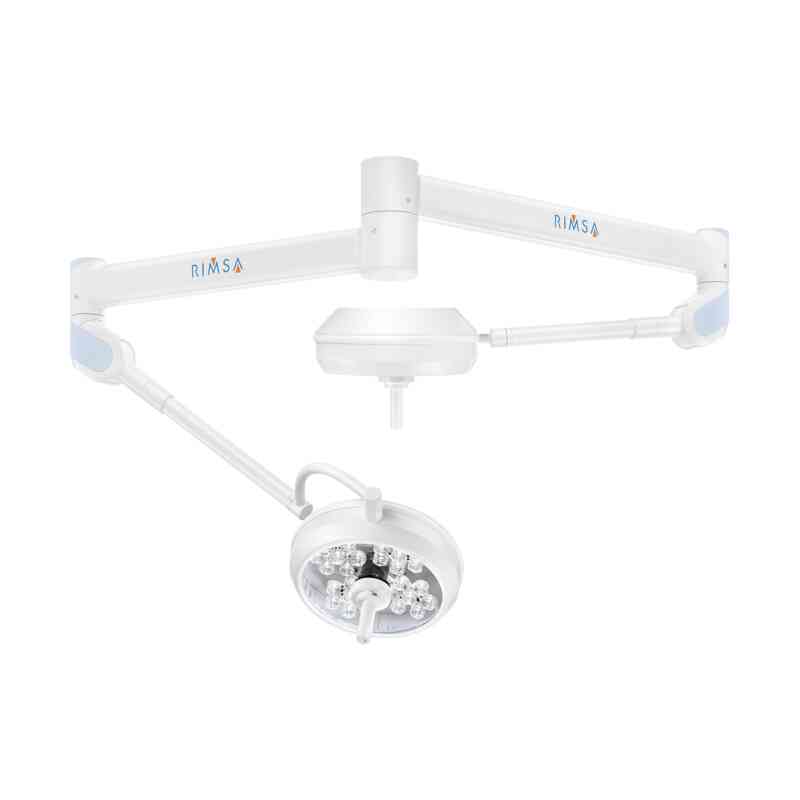

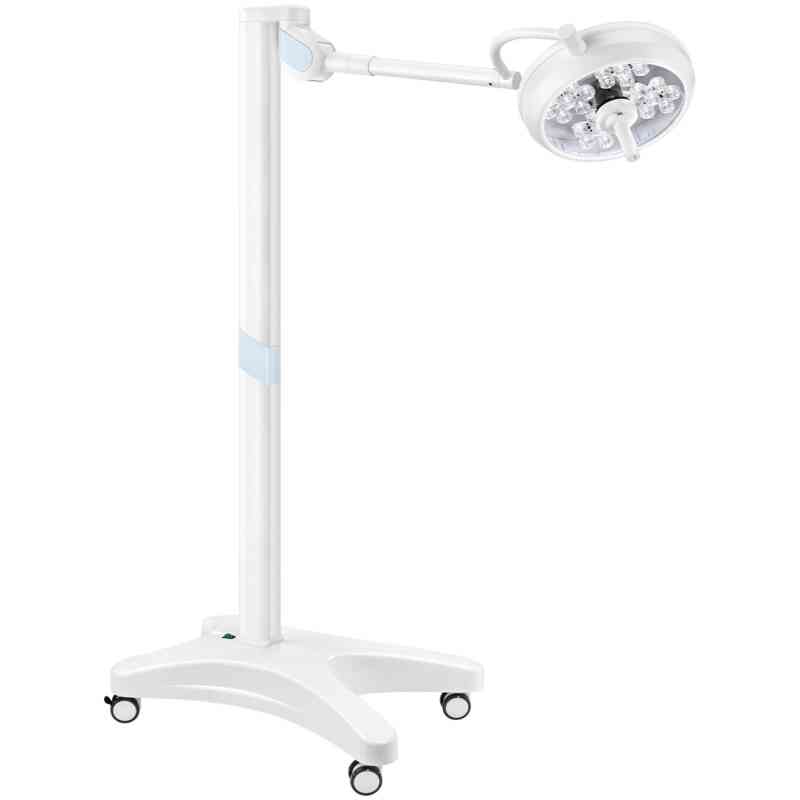

TRIS-LED is a surgical lamp with excellent operating versatility.

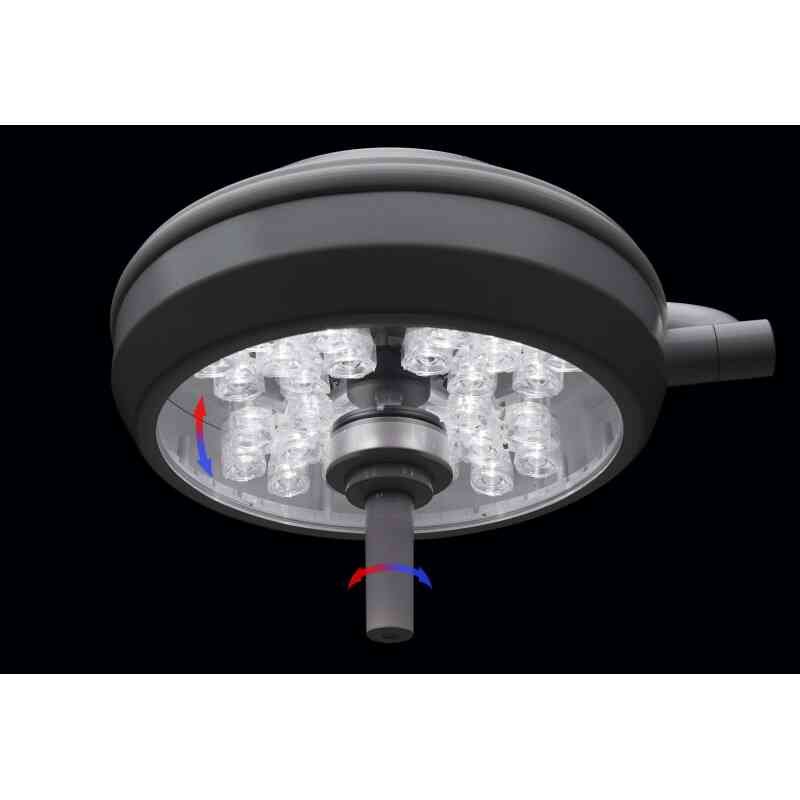

The dome is reduced in size, the focus and the light field can be manually adjusted by turning the central sterilisable handle.
This function allows to optimize the light flux and adapt the light field diameter according to the different surgeries.
Light intensity at 1 m distance (Ec) 130.000 Klx
Out reflector diameter 40 cm
Color temperature 4200 °K
Color rendering index (CRI) 94 Ra
Diameter and focus adjustment Manual
d10 light field diameter where illuminance reached 10% of Ec 280 mm
Light field diameter adjustable from-to 150 – 280 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60% 900 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 20% 1500 cm
Total radiated energy Ee where the illuminance reaches max level 470 W/m2
Ratio between radiated energy Ee and illuminance Ec 459 W/m2
Ratio between radiated energy Ee and illuminance Ec 3,56
Average led life> 60.000 hours
Control of the illuminance 25 – 100 %
Electrical absorption 50 W – 90 VA
